E-Series TCG Rip Saw Blades
For single and gang rip operations
-
Features

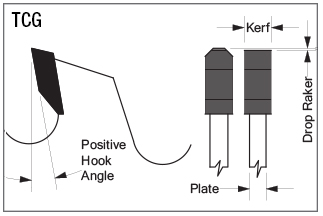

- Triple chip tooth design for high production and long tool life
- Machine specific with available keys and pins where required
| Part No. | Diameter | Teeth | Bore Size | Hook Angle | Kerf | Plate | Keyways or Holes Qty.-Dia.-B.C. | Machine |
| SC118 | 300mm | 36 | 70 | 20º | .157" | .110" | 2ea. 20x10 Keys | SCM Machine |
| SC028 | 10" | 40 | 3" | 15º | .125" | .085" | 3-5/16"-3 | Lauderdale & Hamilton Rip |
| SC029 | 10" | 40 | 4-3/16" | 15º | .125" | .085" | 3 Pins | Lauderdale & Hamilton Rip |
| SC122 | 14" | 36 | 3-1/8" | 20º | .157" | .110" | - | Mereen Johnson 424 DC |
