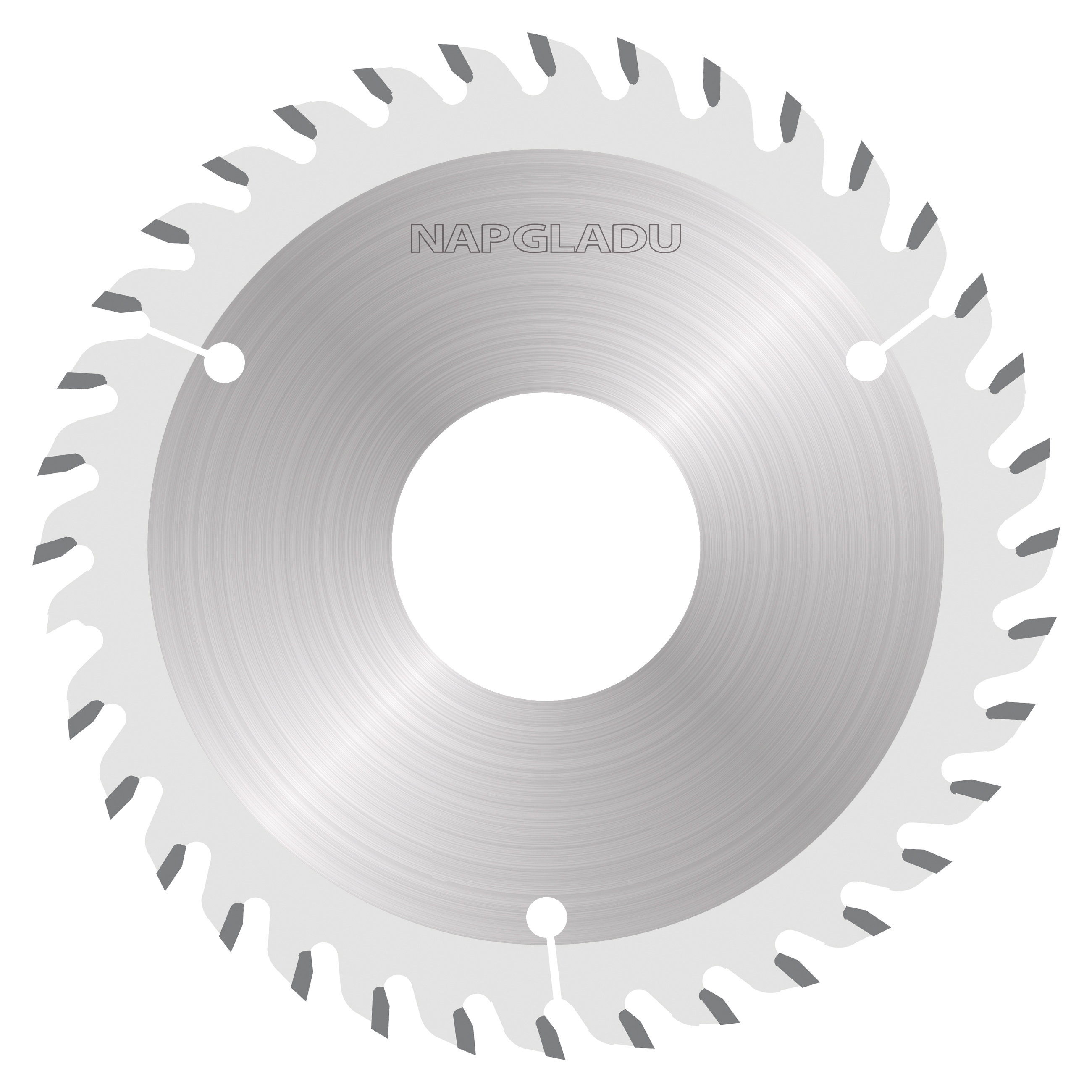

High-Performance Scoring Blades
(For Cutting: MDG, Laminated & Raw MDF, Plywood, Particle Board)
-
Features
- Designed specifically for high-powered panel saws machines and sliding table saws
- Exceptional tool life and cut quality for reduced cost-per-cut
- Resharpenable at your regional NAP GLADU service center
- Click here to download the full-line product brochure.
Adjusting Scoring
The width and depth of the score (B1) is obtained by adjusting the height of the scoring blade into the material. Increasing blade height increases score width and depth.
| Part No. | Diameter | Teeth | Bore Size | Hook Angle | Kerf | Plate | Keyways or Holes Qty.-Dia.-B.C. |
Machine |
| 455-9A00 | 80 | 12 | 20 | 0° | 3.1-4.3 | 2.2 | ||
| 455-9A01 | 100 | 20 | 20 | 0° | 3.1-4.3 | 2.2 | Schelling | |
| 455-9A02 | 105 | 16 | 45 | 0° | 3.1-4.3 | 2.2 | Kraftlyne | |
| 455-9A03 | 120 | 24 | 20 | 0° | 3.1-4.3 | 2.2 | ||
| 455-9A04 | 120 | 24 | 22 | 0° | 3.1-4.3 | 2.2 | ||
| 455-9A05 | 120 | 24 | 30 | 0° | 3.1-4.3 | 2.2 | ||
| 455-9A06 | 125 | 24 | 20 | 0° | 3.1-4.3 | 2.2 | Panhans | |
| 455-9A07 | 125 | 24 | 20 | 0° | 3.1-4.3 | 2.2 | 2/8/42 | Frama |
| 455-9A08 | 125 | 24 | 22 | 0° | 3.1-4.3 | 2.2 | Panhans | |
| 455-9A09 | 125 | 24 | 45 | 0° | 4.4-5.6 | 3.2 | Giben-Homag | |
| 455-9A10 | 125 | 24 | 20 | 0° | 4.4-5.6 | 3.2 | Gabbiani-SCM | |
| 450-9A00 | 150 | 24 | 20 | 8° | 4.4-5.6 | 3.2 | Schelling | |
| 450-9A01 | 150 | 24 | 30 | 8° | 4.4-5.6 | 3.2 | SCM | |
| 450-9A02 | 150 | 24 | 45 | 8° | 4.4-5.6 | 3.2 | Homag | |
| 450-9A03 | 160 | 36 | 45 | 8° | 4.4-5.6 | 3.2 | 3/13/80 | |
| 450-9A04 | 160 | 36 | 55 | 8° | 4.4-5.6 | 3.2 | 3/7/66 | Gabbiani-SCM |
| 450-9A05 | 180 | 28 | 30 | 8° | 4.4-5.6 | 3 | 2/7/42 + 2/10/60 | Panhans |
| 450-9A06 | 180 | 36 | 45 | 8° | 4.8-5.8 | 3.5 | Holzma | |
| 450-9A07 | 180 | 42 | 50 | 8° | 4.4-5.6 | 3.2 | 3/13/80 | Giben |
| 450-9A08 | 180 | 36 | 45 | 8° | 4.4-5.6 | 3.2 | 3/13/80 | Giben |
| 450-9A09 | 180 | 36 | 45 | 8° | 4.4-5.6 | 3.2 | Holzma | |
| 450-9A10 | 200 | 36 | 20 | 8° | 4.4-5.6 | 3.2 | 2/9/110 + 2/11/66 | Schelling |
| 450-9A11 | 200 | 36 | 30 | 8° | 4.4-5.6 | 3.2 | 2/9/60 | Scheer |
| 450-9A12 | 200 | 36 | 45 | 8° | 4.8-5.8 | 3.5 | Holzma | |
| 450-9A13 | 200 | 36 | 65 | 8° | 4.8-5.8 | 3.5 | 2/9/100 + 2/9/110 | Selco |
| 450-9A14 | 200 | 42 | 50 | 8° | 4.4-5.6 | 3.2 | 3/13/80 | Giben Smart 65 |
| 450-9A15 | 200 | 36 | 20 | 8° | 5.5-6.7 | 3.4 | Schelling | |
| 450-9A16 | 200 | 36 | 45 | 8° | 5.5-6.7 | 3.4 | Holzma | |
| 450-9A17 | 200 | 36 | 65 | 8° | 4.4-5.6 | 3.2 | 2/9/100 + 2/9/110 | Selco |
| 450-9A18 | 200 | 36 | 80 | 8° | 4.4-5.6 | 3.2 | 2/14/110 | Gabbiani |
| 450-9A19 | 200 | 36 | 45 | 8° | 5.8-6.8 | 3.5 | Holzma | |
| 450-9A20 | 200 | 36 | 45 | 8° | 6.2-7.2 | 4 | Holzma | |
| 450-9A21 | 215 | 42 | 50 | 8° | 4.4-5.6 | 3.2 | 3/15/80 | Giben |
| 450-9A22 | 215 | 42 | 50 | 8° | 4.8-5.8 | 3.5 | 3/15/80 | Giben |
| 450-9A23 | 220 | 36 | 20 | 8° | 6.5-7.4 | 4.5 | Schelling | |
| 450-9A24 | 250 | 42 | 50 | 8° | 4.4-5.6 | 3.2 | 3/13/80 | Giben 2 |
| 450-9A25 | 300 | 48 | 50 | 8° | 4.4-5.6 | 3.2 | 3/15/80 | Giben |
| 450-9A26 | 300 | 48 | 65 | 8° | 4.4-5.6 | 3.2 | 2/9/100 + 2/9/110 | Selco EB |
