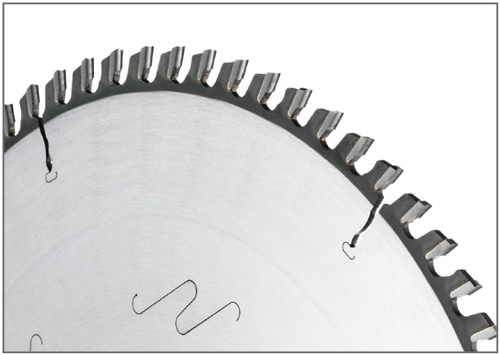

• SuperPlus Panel Saw Blades

  • Features

    • Unique triple chip-flat tooth design
    • Mirror finished tooth face
    • Black Belt Technology
    • N-Form expansion slots

    Benefits

    • Better cutting edge quality
    • Tool life up to 3X longer
    • Noise reduction and low vibration
    • Reduce downtime

    SuperPlus panel saw blades are ideal for Chipboard and MDF panels laminated on both sides, for single or stacked cutting. Provides tool life up to 3 times longer than others. Optional hollow ground tooth geometry is available for veneer and lamintes.


44A: SuperPlus Panel Saw Blades

  • Part No. Dia. Teeth Bore Size Kerf Plate Keyways or Holes
    Qty.-Dia.-B.C.
    SC400 220 mm 60 30 mm 3.2 mm 2.2 mm  2 ph 7/42 + 2 ph 9/46.5
    + 2 ph 10/60
    SC401 250 mm 78 30 mm 3.2 mm 2.2 mm 2 ph 7/42 + 2 ph 9/46.5
    + 2 ph 10/60
    SC402 280 mm 60 30 mm 3.2 mm 2.2 mm 2 ph 7/42 + 2 ph 9/46.5
    + 2 ph 10/60
    SC403 300 mm 90 30 mm 3.2 mm 2.2 mm 2 ph 7/42 + 2 ph 9/46.5
    + 2 ph 10/60
    SC404 350 mm 102 30 mm 3.5 mm 2.4 mm 2 ph 7/42 + 2 ph 9/46.5
    + 2 ph 10/60
  • Technical Info
    • 15˚ positive hook angle
    • 40˚ TCG corner bevel
    • 0.4" drop raker flat top tooth

44B: Triple Chip - Flat Top Saw Blades

  • Part No. Dia. Teeth Bore Size Kerf Plate Keyways or Holes
    Qty.-Dia.-B.C.
    SC410 300 mm 60 30 mm 4.4 mm 3 mm 2 ph 10/60
    SC411 300 mm 72 75 mm 4.4 mm 3 mm
    SC412 305 mm 60 30 mm 4.4 mm 3 mm 2 ph 10/60
    SC413 350 mm 72 30 mm 4.4 mm 3 mm 2 ph 10/60
    SC414 355 mm 72 30 mm 4.4 mm 3 mm 2 ph 10/60
    SC415 355 mm 72 75 mm 4.4 mm 3 mm
    SC416 380 mm 72 60 mm 4.8 mm 3.5 mm 2 ph 14/100 + 2 ph 14/125
    SC417 400 mm 72 30 mm 4.25 mm 3 mm
    SC419 400 mm 72 30 mm 4.4 mm 3.2 mm
    SC418 400 mm 72 75 mm 4.4 mm 3 mm 4 ph 15/105
    SC420 420 mm 72 60 mm 4.8 mm 3.5 mm 2 ph 14/125
    SC428 430 mm 72 80 mm 4.4 mm 3.2 mm
    SC421 450 mm 72 30 mm 4.4 mm 3.2 mm 2 ph 10/60
    SC422 450 mm 72 30 mm 4.8 mm 3.5 mm 2 ph 8.5/60
    SC423 450 mm 72 60 mm 4.8 mm 3.5 mm 2 ph 14/125 + 2 ph 19/120
    SC429 450 mm 72 80 mm 4.8 mm 3.5 mm 4 ph 19/120 + 2 ph 9/130
    SC424 480 mm 72 80 mm 4.8 mm 3.5 mm 4 ph 19/120 + 2 ph 9/130
    SC425 500 mm 72 60 mm 4.8 mm 3.5 mm 2 ph 11/115
    SC426 570 mm 60 60 mm 4.8 mm 3.5 mm 2 ph 19/120
    SC427 600 mm 60 60 mm 5.8 mm 4 mm 2 ph 11/115 + 2 ph 19/120

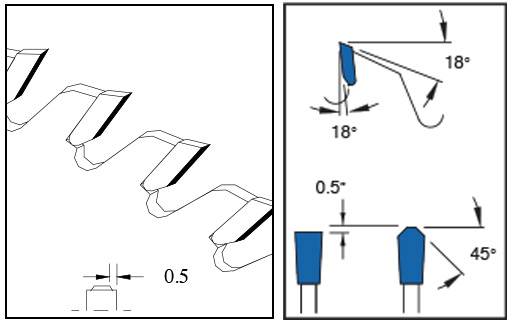

  • Technical Info
    • 18˚ positive hook angle
    • 45˚ TCG corner bevel
    • 0.5" drop raker flat top tooth

44B: Triple Chip - Flat Top Saw Blades

  • Part No. Dia. Teeth Bore Size Kerf Plate Keyways or Holes
    Qty.-Dia.-B.C.
    SC441 250 mm 48 30 mm 3.2 mm 2.2 mm 2 ph 7/42 + 2 ph 9/46.5
    + 2 ph 10/60

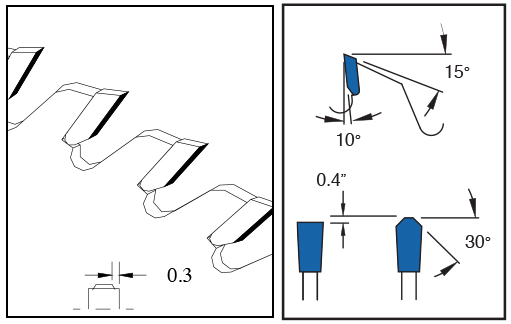

  • Technical Info
    • 15˚ positive hook angle
    • 30˚ TCG corner bevel
    • 0.4" drop raker flat top tooth
