• AKE Reverse Radial Score Blades

    (For Cutting: Laminated & Raw MDF, Plywood, Particle Board)

    AKE Reverse Radial Scoring Panel Saw Blades

  • Features

    • Designed for the high demands of panel saws
    • For pre-scoring the bottom sheet
    • Can also be used on sliding table saws
    • Also used table saws that utilize pre-scoring units

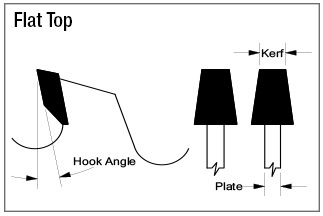

    Flat top tooth style scoring Panel Saw Blades

Flat Top Scoring Blades

Part No. Diameter Teeth Bore Size Kerf Plate Keyways or Holes
Qty.-Dia.-B.C.		 Tooth Style
SC485 150 24 20 4.4 3.2 - FL-RR
SC485-01 150 24 45 4.4 3.2 - FL-RR
SC486Q 160 28 45 4.4 3.2 3 ph 11/70 FL-RR
SC486-01 160 36 55 4.4 3.2 3 ph 11/70 FL-RR
SC487 180 36 45 4.8 3.5 - FL-RR
SC479 200 36 20 4.4 3.2 - FL-RR
SC480 200 36 65 4.8 3.5 2 ph 9/100 + 2 ph 9/110 FL-RR
SC481 200 36 65 4.4 3.5 2 ph 9/100 + 2 ph 9/110
SC482 200 36 45 4.8 3.5 - FL-RR
SC488 200 36 45 5.8 4 - FL-RR
SC489 215 42 50 4.4 3.2 3 ph 15/80 FL-RR

2 Piece Adjustable

Part No. Diameter Teeth Bore Size Kerf Plate Keyways or Holes Qty.-Dia.-B.C. Tooth Style
SC450 100 24 20 2.8-3.6 4 - FL-RR
SC451 120 24 50 2.8-3.6 4.4 - FL-RR
SC452 120 24 20 2.8-3.6 4 - FL-RR
SC453 120 24 22 2.8-3.8 4 - FL-RR
