• Cross Cut – Finish Trim Blades

    (For Cutting: Softwoods and Hardwoods)

    Crosscut and Rip cut Saw Blades

  • Features

    • Designed for high quality cross cutting with minimum waste
    • Smooth cuts with minimum tearout on end grain applications and thin material
    • Use of stiffening collars is recommended

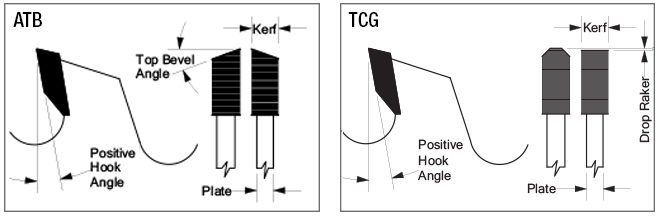

    ATB & TCG Positive Hook Saw Tooth Styles

ATB Saw Blades

Part No. Diameter Teeth Bore Size Hook Angle Kerf Plate Keyways or Holes Qty.-Dia.-B.C. Machine
SC173 10" 100 5/8" 0º .115" .085" - Table, Radial & Cut-Off Saws
SC175 10" 100 5/8" 5º .125" .085" - Table, Radial & Cut-Off Saws
SC176 12" 100 1" 5º .125" .095" - Table, Radial & Cut-Off Saws
SC180 12" 120 1" 5º .118" .083" - Table, Radial & Cut-Off Saws
SC181 14" 100 1" 5º .156" .110" - Table, Radial & Cut-Off Saws
SC136 14" 100 1" 10º .138" .098" - Table, Radial & Cut-Off Saws
SC182 14" 120 1" 0º .150" .110" - Table, Radial & Cut-Off Saws
SC186 15" 100 1" 5º .160" .110" - Table, Radial & Cut-Off Saws
SC187 16" 100 1" 5º .165" .120" - Table, Radial & Cut-Off Saws
SC188 16" 120 1" -5º .155" .120" - Table, Radial & Cut-Off Saws
SC142 18" 100 1" 5º .177" .134" - Table, Radial & Cut-Off Saws
SC189 18" 120 1" 5º .177" .134" - Table, Radial & Cut-Off Saws
SC195 20" 100 1" -5º .177" .134" - Table, Radial & Cut-Off Saws

TCG Saw Blades

Part No. Diameter Teeth Bore Size Hook Angle Kerf Plate Keyways or Holes Qty.-Dia.-B.C. Machine
SC159 10" 100 5/8" 5º .126" .087" - Table & Cut-Off Saws
SC200 12" 100 1" 5º .125" .095" - Table & Cut-Off Saws
SC201 350 120 1" 0º .140" .110" - Table & Cut-Off Saws
SC202 14" 100 1" 5º .138" .098" - Table & Cut-Off Saws
SC177 14" 100 1" 10º .165" .120" - Table & Cut-Off Saws
SC204 16" 100 1" 5º .165" .120" - Table & Cut-Off Saws
SC167 16" 120 1" 5º .155" .120" - Table & Cut-Off Saws
SC169 18" 100 1" 5º .177" .134" - Table & Cut-Off Saws
SC205 20" 100 1" 5º .173" .134" - Table & Cut-Off Saws
