  • Straight Bore – Straight Faced

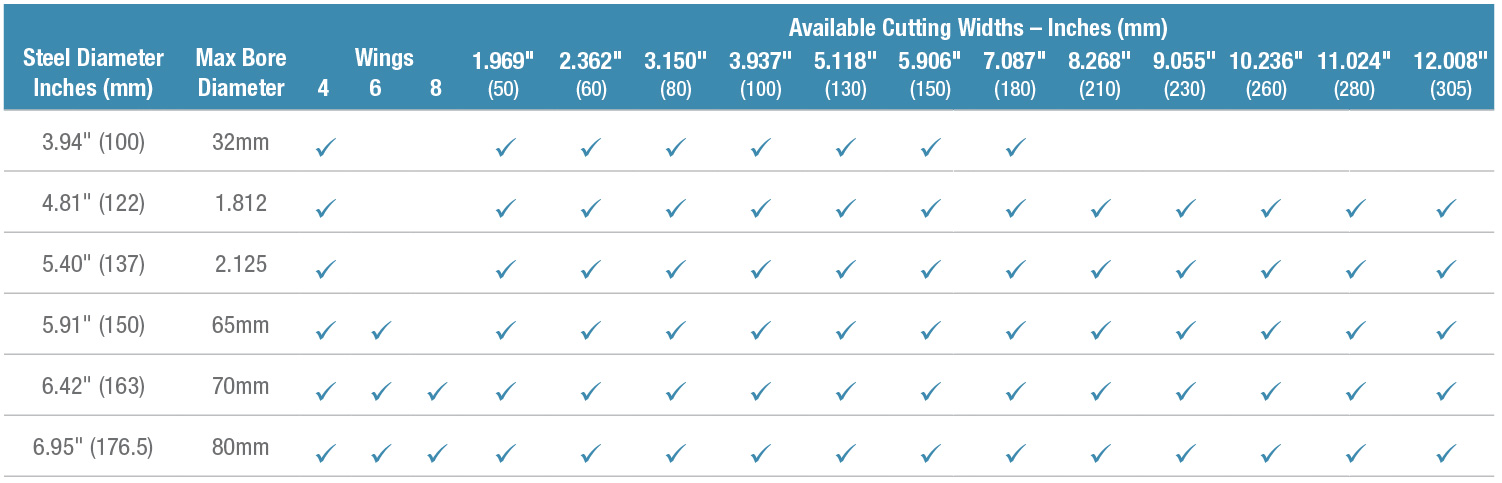

    Note: Specify your bore diameter when ordering.
    Do not exceed the listed maximum bore diameter.

    Features

    • Straight Bore Heads are designed for
      mounting on threaded arbors
    • Available in inch or metric bore sizes
    • Dual Hook Angles also available
    Straight Bore Accessories
    Set Screw for Knife Heads
    Knife Head Gibs
  • Technical Information
    • 60° Corrugation in the Knife Heads Standard
    • 90° by special quotation only
    • 10° hook angle for hardwoods
    • 15° hook angle for mixed hard and soft woods
    • 20° hook angle for soft woods
    • High tensile steel body with hardened gibs
    • Accepts either 5/16” or 3/8” thick knives in one head.
