• Spiramax Insert Heads

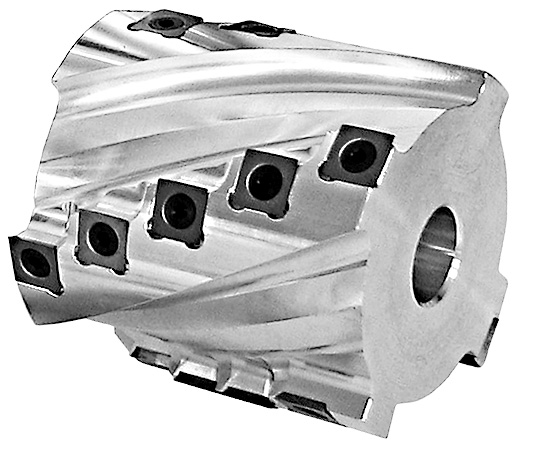

    Spiramax insert heads for moulders and shapers, designed for mounting on threaded arbors

    Spiramax Replacement Screws
    Part No. Desc. Dimensions Carbide Grade
    TJ173 Standard Inserts 15x15x2.5 General Purpose
    TJ168 Spur Inserts 14x14x2.0 General Purpose

    Spiramax Replacement Screws
    Part No. Dimensions
    INS-0030 3.0mm Hex screws &T15 Torx screws

  • Applications

    • Moulders, shapers, and similar types of applications

    Specifications

    • Heads can be ordered in either right-hand or left-hand spirals
    • Spurs can be added to either side or both sides
    Spiramax Technical Information
    Design
    • Spiramax heads feature 3+3 wing design
    • Straight bore heads are designed for mounting on threaded arbors
    • Available in inches or metric bore sizes. Specify your required bore size when ordering, do not exceed maximum bore diameter.

    Good tool life in natural wood & man made material
    • Recommend 20-30 ft/min per effective wing at 6000 rpm or .030”-.060” chip load for good finish when planing natural wood.

    Good finish quality
    • Scratch free finish. Guaranteed with round insert and hydro-bore only.
    • Expect slightly wavy cut due to rounded inserts (wave depth .0005”-.0015”).

    Insert replacement
    • High performance 4 sided insert.

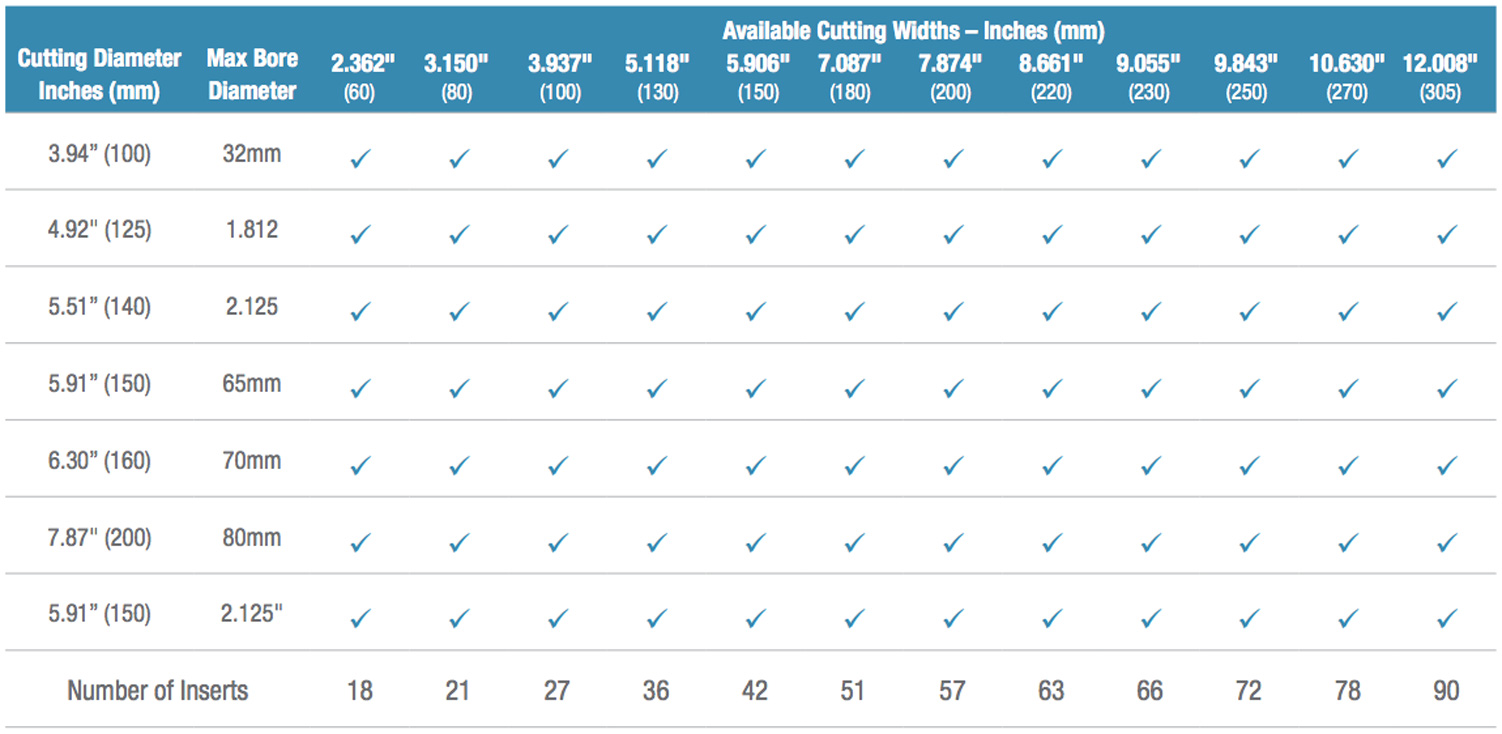

Straight Bore Roughing Heads
Straight Bore Roughing Heads

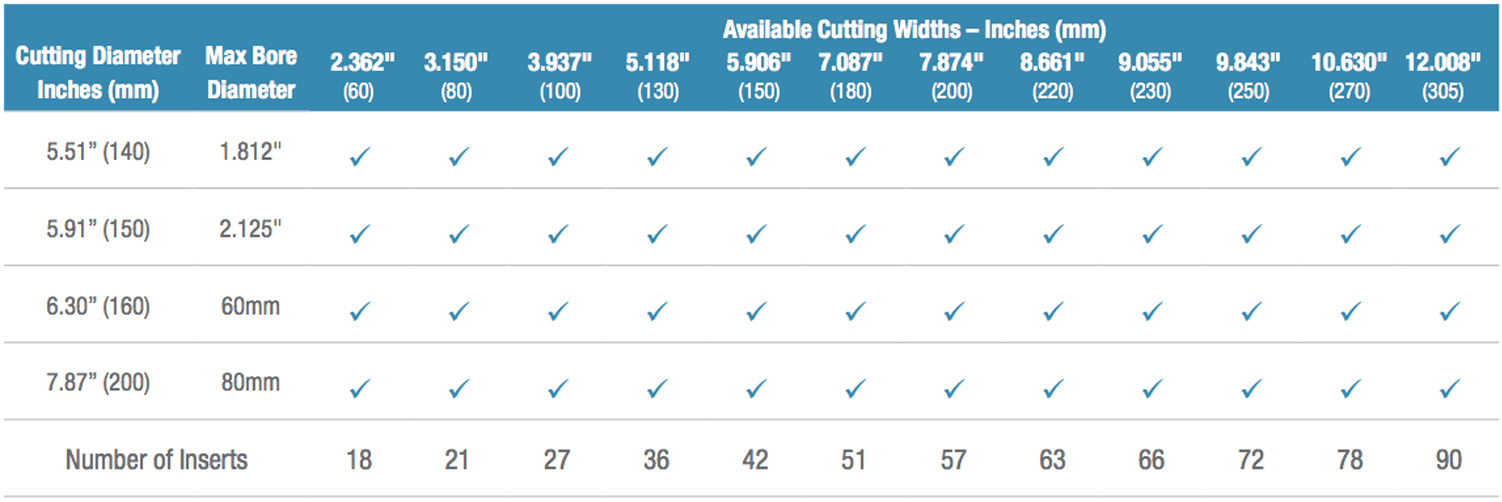

Hydro Bore Finishing Heads
