Sidewinder Insert Heads for Man-Made Materials Applications
-
Straight Bore Roughing Heads
| Cut Diameter |
Max Bore Diameter |
Wings |
| 3.94" (100) |
32mm |
2, 3 |
| 4.92" (125) |
1.812" |
2, 3 |
| 5.39" (137) |
2.125" |
3, 4, 6 |
| 5.90" (150) |
65mm |
3, 4, 6 |
| 6.42" (163) |
70mm |
4, 6, 8 |
| 7.68" (195) |
80mm |
4, 6, 8, 10 |
-
Hydro Bore Finishing Heads
| Cut Diameter |
Max Bore Diameter |
Wings |
| 4.92" (125) |
1.812" |
2, 3 |
| 5.39" (137) |
1.812" |
3, 4, 6 |
| 5.90" (150) |
2.125" |
3, 4, 6 |
| 6.42" (163) |
60mm |
4, 6, 8 |
| 7.68" (195) |
80mm |
4, 6, 8, 10 |

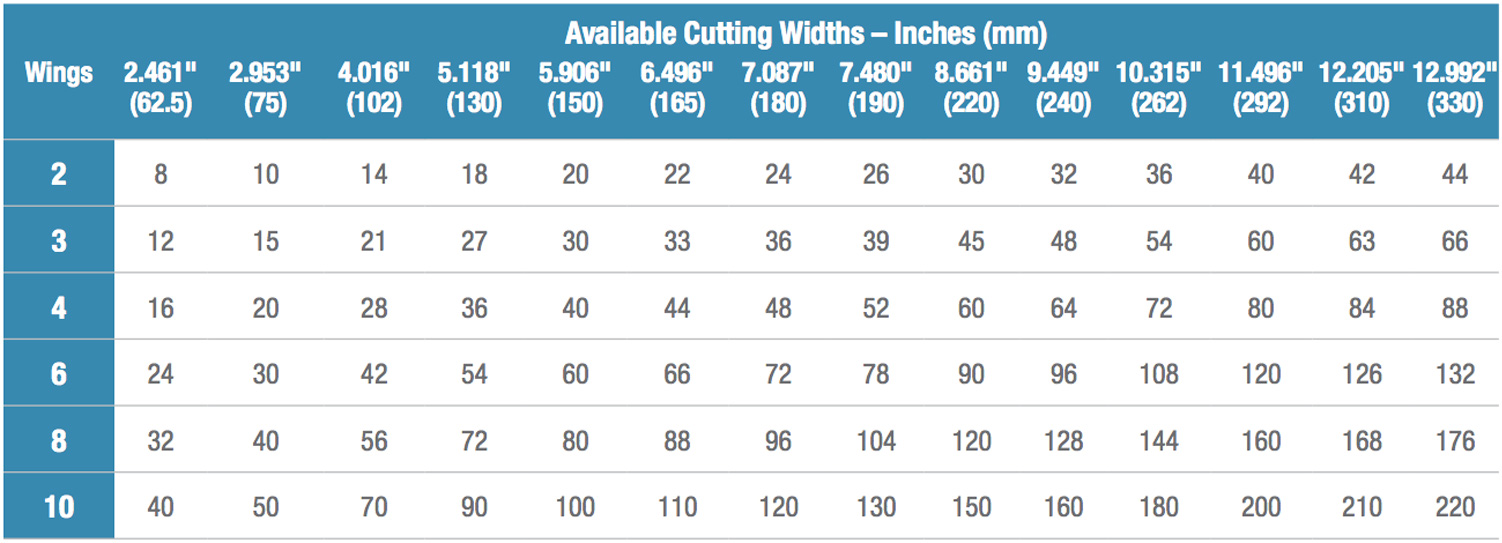

Number of inserts per head
(Match the number of wings on the left to your desired cutting width, for the number of inserts required.)
