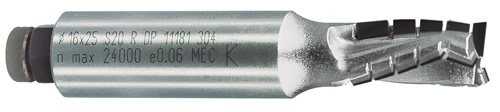

• Diamond PCD Compression Router Bits

    3 Wing

  • Applications

    • Grooving, jointing, rebating, sizing of raw
      or coated chipboard and MDF material

    Advantages

    • Less waste of material
    • Low cutting force
    • Good edge quality on top and bottom
    Technical Information
    • RPM: 18,000-35,000
    • Feed rate: 590-1375 in/min
      (depending on material type and thickness)

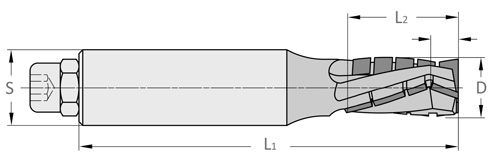

Part No. D L2 L1 S Material Thickness
RN300 12 22 75 12x45 .394"-.750"
RN301 12.7 (.500) 28 85 12x45 512"-.866"
RN302 12.7 (.500) 28 85 12.7 (.500)x45 512"-.866"
RN303 16 21 95 20x55 .512"-.748"
RN304 16 29 100 20x55 .748"-.984"
RN305 18 52 130 20x55 1.102"-1.89"
