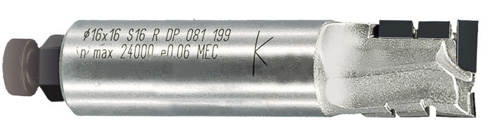

• Diamond PCD Compression Router Bits

    2 Wing

  • Applications

    • Grooving, jointing, rebating, sizing of plywood

    Advantages

    • Large gullet areas
    • High rigidity
    Technical Information
    • RPM: 18,000-35,000
    • Feed rate: 590-1375 in/min
      (depending on material type and thickness)
    • Up spiral length 255
    • Maximum material thickness: 905

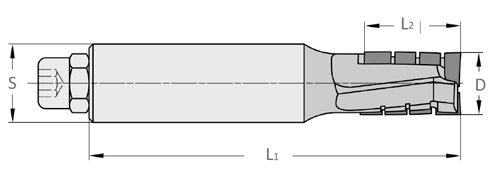

Part No. D L2 L1 S
RN320 16 25 95 20x55
