Diamond PCD Router Bits
Technical Information
- Combination up/down shear design eliminates chipping and splintering on laminated material
- Diamond boring point extends plunge/route performance
- All tools are right-hand bits unless otherwise specified.
Left-hand router bits are available upon request
-
Applications
- Designed for use on CNC routers
- Use on clean man-made material such as particle board and Corian MDF is an excellent material for diamond use
- Use in applications where the router bit is left on the machine for extended periods of time, justifying a decrease in tool changes
- Diamond router bits require rigid fixturing
- Hand routing operations are not recommended
Advantages
- An opportunity to increase your production efficiency and reducing overall tooling costs
- Typically, diamond tools can run 50-100 times longer than conventional carbide tools
- With reasonable care, NAP Gladu’s diamond
router bits can be sharpened 1-3 times - The diamond plunge point produces superior
performance over carbide plunge point

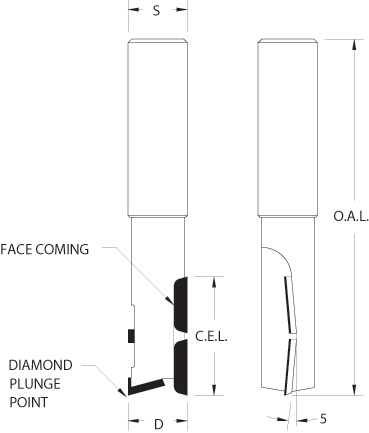

| Part No. | Cutting Diameter |
Cutting Edge Length |
Shank Size | Overall Length | No. of Flutes |
| RN111 | 1/2" | 1" | 1/2" | 3" | 1 |
| RN114 | 1/2" | 1-1/4" | 1/2" | 3-1/4" | 1 |
| RN117 | 5/8" | 1" | 5/8" | 3" | 1 |
| RN119 | 3/4" | 1" | 3/4" | 3" | 1 |
| RN123 | 3/4" | 1-1/4" | 3/4" | 3-1/4" | 1/1/00 |
| RN124 | 3/4" | 1-1/4" | 3/4" | 3-1/4" | 2 |
| RN126 | 3/4" | 1-5/8" | 3/4" | 3-1/2" | 1 |
