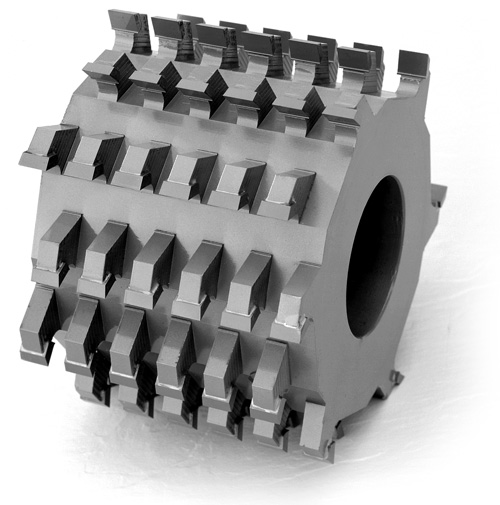

  • Whisper Quiet Moulder Heads

    Choose your head based on required wings:
    WQI-4Wing  |  WQI-6Wing  |  WQII-4Wing  |  WQII-6Wing
    Technical Information

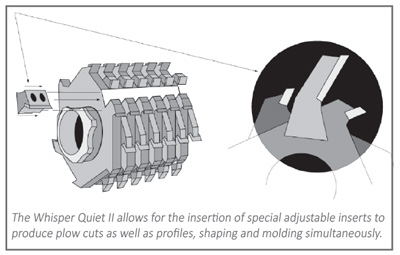

    • Stagger tooth design on a one piece head
    • Soft wood (20°) and hard wood (10°) hook angles
    • Additional hook angles available upon request
    • Available in either a 4 wing (4WQI and 4WQII)
      or 6 wing (6WQI or 6WQII) equivalent
    • Additional wing counts available by quote only

  • Applications

    • For running dimension stock in through feed or conventional moulders

    Advantages

    • CNC machined from solid steel for better accuracy
    • Staggered tooth design provides deeper cuts and reduce
      s air turbulence, noise and cutting pressures on the material
    • Smooth finish on material (no lines)
    • Less noise generated
    • Individual teeth for lower maintenance cost
