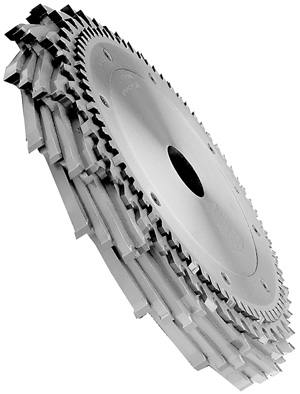

  • Step Cone Hoggers


    Technical Information
    • Laser cut trim saws

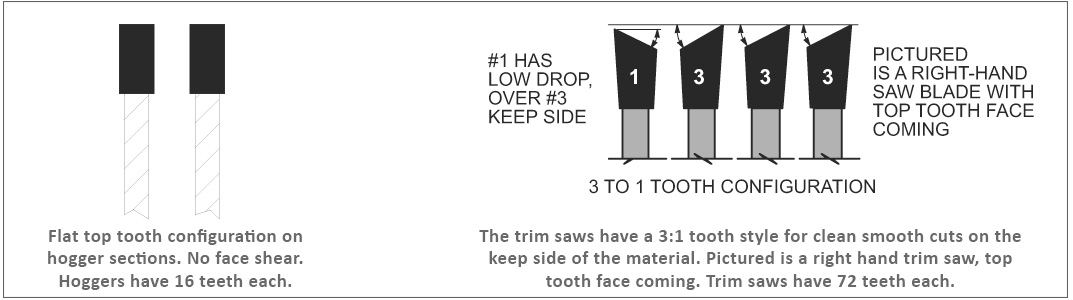

    • Trim saws are 3:1 tooth style Standard 72 teeth
    • Utilizes a progression from small diameter trim saw blades to large diameter hogger sections

  • Applications

    • For use on double end tenons, double cut-off and roll feed machines, sizing machines, gang rip machines, and multiple cutting machines
    • To hog off all material into sawdust while simultaneously producing a trim cut

    Advantages

    • Dynamically balanced to reduce vibration
    • Individual teeth for lower total maintenance cost
    Replacement Trim Saws
    Part No. Number of Teeth Blade Diameter
    HC 248-1 72 10"
    Replacement Spare Parts
    Part No. Max. Diameter Min. Diameter Cutting Width
    HC 248 11.75" 10" 3/8"
    HC 348 12.50" 10" 3/4"
    HC 448 12.50" 10" 1-1/4"
