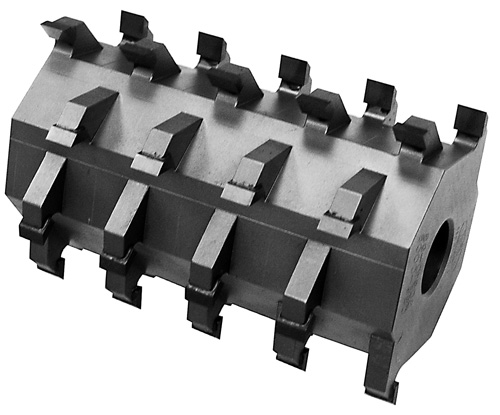

  • Spiracut Shaper Heads

    Technical Information
    • Stagger tooth design on one-piece, 2-wing
      head with replaces 2- wing straight knife heads
    • 25 degree hook is standard
    • Additional hook angles available upon request
    • Specify straight or cone collet bore
    • Bore sizes available in 1”, 1-1/8” and 1-1/4”
    • Other bores available upon request

  • Applications

    • For hand and automatic feed shaper operations
    • Excellent tool for rip and end grain cuts

    Advantages

    • CNC machined from solid steel for better accuracy
    • Spiral tooth design for reduced cutting pressure,
      faster feed rates, and less horsepower required
      over straight knife heads
    • Less noise generated
    • Minimal tear out
    • Individual teeth for lower maintenance cost
    Part No. Head Diameter Teeth Cutting Width
    SSH 4-3 4" 18 3"
    SSH 4-4 4" 24 4"
    SSH 4-5 4" 30 5"
    SSH 4-6 4" 36 6"
